When you connect a computer to a screen, knowing about video interfaces is important for the best possible visual experience and best picture quality. Two common types, Digital Visual Interface (DVI) and Video Graphics Array (VGA), can be confusing. This guide will go over their differences, benefits, and where you can use them. It aims to help you make better choices for your display device.
What are the differences between DVI Vs VGA connectors?
DVI vs VGA connectors differ primarily in their design and technology. DVI supports digital signals, providing higher quality video, while VGA is an analog interface, which may result in lower image clarity. Additionally, DVI can transmit audio, whereas VGA solely handles video signals, making them suitable for different applications.
Understanding DVI Vs VGA Technologies
DVI, or Digital Visual Interface, is a type of video interface that connects a video source and sends video data in a digital way. This usually means you get a clearer and better image, especially when using higher resolutions, compared to older analog systems.
VGA, which stands for Video Graphics Array, is an older analog technology that was popular before digital connections took over. While VGA was important in the growth of display technology, its analog design makes it weaker against signal degradation and does not support as high resolutions as the Digital Visual Interface.
The Basics of DVI (Digital Visual Interface)
DVI, or Digital Visual Interface, is a major step up in video quality. This digital DVI interface, including the Digital Visual Interface, is often found on new desktop PCs and bigger external monitors. DVI ports send high-quality digital video signals. They provide better image quality than VGA connectors. This is especially helpful when connecting to bigger external monitors or new displays that need high resolutions for the best visual experience. If you want clear and precise images, choose Digital Visual Interface.
The Basics of VGA (Video Graphics Array)
The VGA, or Video Graphics Array, is a common standard for connecting displays, including computer monitors. You often see it in older monitors and desktop computers. It uses a VGA cable that has a different kind of pin configuration with 15-pin connectors to send video signals, creating a complementary connection. VGA provides good picture quality but has limits when it comes to higher resolutions. It also needs a separate audio cable for sound. While Video Graphics Array ports are the most popular type of connector, newer digital interfaces like DVI and HDMI are taking over. This makes VGA less common for high image quality and better signal transmission.
Key Differences Between DVI Vs VGA
The main difference between DVI vs VGA is how they send signals. The basic differences are that Digital Visual Interface, a considerably newer connection type, sends video signals in a digital format, while VGA uses an analog format. This difference provides an in-depth look at how greatly it affects their performance, especially in image quality, and how much they can be disrupted by interference.
Digital Visual Interface usually gives a sharper and clearer image, especially at high resolutions. This is because there is no need to change the signal from digital to analog or the other way around. Also, digital signals are less likely to be affected by outside interference, leading to a cleaner and more stable picture. On the other hand, VGA’s analog signals can make the image look a bit blurry or less detailed, particularly when using longer cables or at higher resolutions.
Signal Quality and Transmission
Signal quality is very important for a good viewing experience. Digital and analog signals behave differently, and this affects how clear the image is. DVI sends a digital video signal, which keeps the signal strong over longer distances than analog signals do. Digital signals change data in separate steps, making them less likely to weaken from issues like electromagnetic interference or signal loss.
On the other hand, VGA uses analog signals, which struggle to keep their quality over long cable lengths. Because Video Graphics Array signals are continuous, they can pick up noise and distortion while traveling. This can lead to problems in the image, including less sharpness, wrong colors, and unwanted visual effects.
The strength of digital video signals makes a DVI cable a better choice for cases where it is important to keep high signal quality over distance. For long cable runs or high-resolution screens, Digital Visual Interface provides a clearer, sharper, and more trustworthy image compared to VGA.

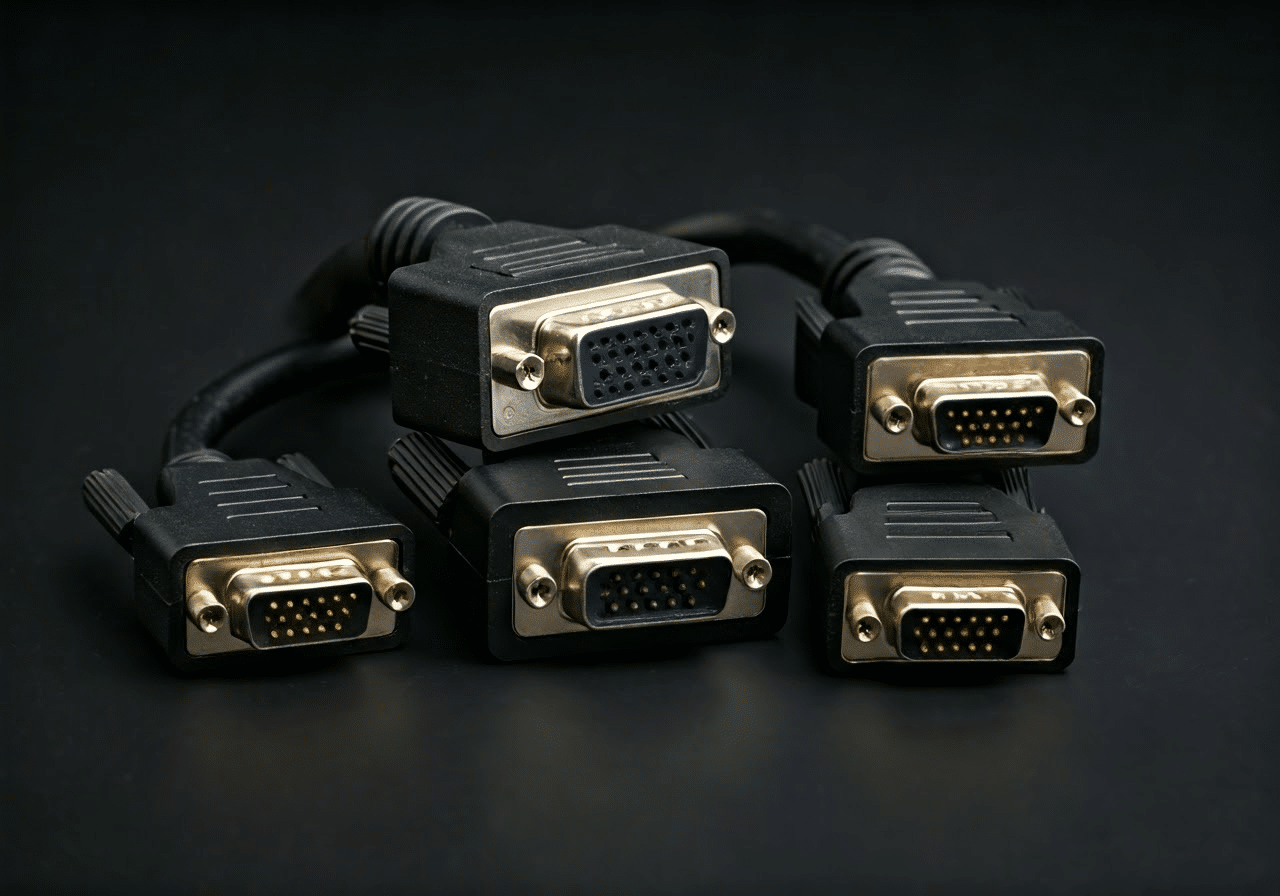

Connector Types and Pin Configuration DVI Vs VGA
DVI vs VGA connectors exhibit different physical characteristics and pin configurations, reflecting their distinct signal transmission methods and capabilities. While VGA connectors typically feature a 15-pin D-sub connector, easily identifiable by its blue color and three rows of five pins, Digital Visual Interface connectors come in various configurations.
Digital Visual Interface connectors are usually white and feature a more complex pin layout accommodating digital and analog signals. VGA connectors, with their straightforward design, transmit analog signals only. The number of pinholes on a VGA port aligns with the equal number of pinholes on a Video Graphics Array cable, ensuring a secure and proper connection.
|
Feature |
VGA Connector |
DVI Connector |
|---|---|---|
|
Color |
Blue |
White |
|
Pin Count |
15 |
Varies by type |
|
Signal Type |
Analog |
Digital (or both) |
Compatibility of DVI Vs VGA with Modern Devices
The use of DVI vs VGA connections in today’s devices is different. Digital Visual Interface is now more common in modern setups, particularly with LCD monitors, and has become the default home theater connection standard. Many new graphics cards and monitors come with Digital Visual Interface ports. This allows for a direct digital connection that helps maintain signal quality and provides great image quality on high-resolution displays. A Digital Visual Interface connection keeps the digital signals clear, giving a sharper and more detailed picture than Video Graphics Array, especially on screens with resolutions over 1080p. Below, we will explore two common kinds of connections that users can enjoy with their high-resolution content without much signal loss.
VGA ports are less common now but can still show up on some monitors, projectors, and laptops. They help keep older devices working with new equipment. A VGA connection might not take full advantage of high-resolution displays.
The shift to digital options like HDMI and DisplayPort has meant fewer VGA ports in new devices. Still, VGA is useful in some cases, like with older equipment or when using adapters to connect old devices to new setups.
Advantages of Using DVI Vs VGA
Using a Digital Visual Interface card instead of a VGA card, DVI has many benefits because DVI is digital. The biggest advantage is better picture quality. DVI provides sharper and clearer images, especially on high-resolution screens. This cable transfers digital signals directly, making it compatible with various analog equipment. This direct transmission avoids analog conversion, which helps to reduce signal degradation. As a result, you get a cleaner and more accurate picture of what you are watching.
Also, DVI is less affected by signal interference. Unlike analog signals that can pick up noise and distortion from the surroundings, Digital Visual Interface signals stay strong over long distances. This makes DVI perfect for setups that need longer cables.
Higher Resolution Support
DVI is better than VGA because it supports higher resolutions. This makes it great for any work or fun that needs clear details. Video Graphics Array has a maximum resolution of 1920×1080 pixels. That is fine for standard definition content, but it doesn’t work well for HD videos or complicated graphics.
Digital Visual Interface, especially the dual-link version, can reach resolutions up to 2560×1600 pixels. This means users can get the most out of their high-resolution displays compared to analog VGA. Gamers, graphic designers, and video editors enjoy DVI because it shows details clearly without losing clarity.
Higher resolutions bring more pixels, which means a better and more attractive experience. Images are sharper, text is easier to read, and the detail is richer compared to lower resolutions. Digital Visual Interface’s ability to support higher resolution helps users fully enjoy their HD videos and applications.
Reduced Signal Interference
DVI is strong against signal interference, which leads to a clearer and more stable image. This is especially important for people who are sensitive to issues like image artifacts or distortions. When there is less signal interference, the quality of the signal improves. This means the video signal stays true to its original quality as it moves from the source to the display device.
In contrast to analog signals, which can lose quality from external sources, DVI’s digital signals keep their strength over longer distances. They also do better in places with lots of electronic noise. This makes DVI great for setups where the cable needs to run near other electronic devices.
Whether you’re watching a movie, working on a graphic design task, or playing an intense game, having a clear image without distractions from signal interference greatly improves your viewing experience. DVI’s ability to maintain signal quality is a key reason why it is an excellent choice in areas where reducing interference is very important.
Dual Link vs. Single Link Digital Visual Interface
DVI interfaces come in two main types: single link and dual link. Choosing the right Digital Visual Interface cable, especially when considering female plugs, is essential, as single-link DVI is the most common one. It uses one transmitter and receiver pair, which limits the bandwidth for sending video data. This is often enough for standard resolution displays, according to recommendations by Data Pro. However, it may not be able to handle resolutions or refresh rates that are too high.
Dual link DVI, as the name implies, has two transmitter and receiver pairs. This setup doubles the bandwidth compared to a single-link Digital Visual Interface. The extra bandwidth means dual-link Digital Visual Interface can manage much higher resolutions and refresh rates. This makes it ideal for tasks that need great visual quality.
Choosing between single-link and dual-link DVI mainly depends on what you need for your display. Single-link DVI will probably work fine if you have standard 1080p displays or lower. But if you use higher resolution monitors or want refresh rates above what single-link Digital Visual Interface can handle, you will need a dual-link Digital Visual Interface connection for the best performance.
When to Use VGA Vs DVI
While Digital Visual Interface usually gives better performance, there are times when you might need to use VGA. For example, older systems may not support Digital Visual Interface, so VGA is the only option. Some older monitors or projectors don’t have digital inputs, which means you need a Video Graphics Array connection to get the video signal.
Cost can also make VGA a better choice in some cases. VGA cables and adapters are often cheaper than DVI ones. This makes Video Graphics Array a smart option if you’re working with older equipment or have a tight budget. For a simple and low-cost way to connect standard-definition displays or older devices, VGA could be a good solution.
Legacy Systems and Compatibility
Video Graphics Array is an older technology, but it is still important for older systems that do not support new digital connections. Many legacy systems, like old computers and projectors, mainly use VGA for video output. This is because Video Graphics Array was widely used in earlier computing times, making it necessary for compatibility with older tools.
Older monitors usually do not have digital inputs like DVI or HDMI. These monitors still work, but might not be able to understand digital signals from newer systems. Video Graphics Array, being an analog standard, gives a steady way to connect these monitors, often through analog audio ports. This is especially important when keeping old equipment is critical or if replacing it isn’t possible.
Keeping older equipment working is important in different places, such as schools with outdated gear or companies using legacy systems. Video Graphics Array helps connect older devices with newer ones. It ensures those devices can still be used effectively in today’s work settings.
Cost Considerations
When looking for cost-effective ways to connect videos, especially for older or standard-definition screens, VGA often stands out as a low-cost choice. Video Graphics Array cables usually cost less to make and buy than digital options like Digital Visual Interface or HDMI. This price difference is due to the simple design of Video Graphics Array technology and the absence of complex digital parts needed for sending signals.
The low cost of VGA cables and adapters makes them appealing for users with limited budgets or those who want straightforward connectivity without the extra cost of newer technology. For situations where high resolution or perfect quality is not crucial, and saving money is more important, Video Graphics Array is a good alternative.
Students, regular computer users, or people with older devices may find VGA a suitable and budget-friendly option for their display needs. While Video Graphics Array may not perform as well as newer digital options, its affordability and ongoing usefulness in some cases keep it as a practical choice.
How to Convert VGA to DVI and Vice Versa
You can easily change between VGA and DVI signals by using the right adapters and converters. These tools help connect devices with different types of signals. For example, a VGA to DVI adapter lets you connect a computer that has a Video Graphics Array output to a monitor that has a DVI input.
On the other hand, a DVI to VGA adapter allows you to link devices with Digital Visual Interface outputs to those that have Video Graphics Array inputs for an external display, such as an AV source device. Most of the time, this is a straightforward physical connection. However, if you are using a DVI-D to VGA converter, you will need an active converter because DVI-D is a digital signal. The Digital Visual Interface end of the converter needs to be connected properly. To choose the right adapter, you need to look at the ports on both your source and display devices.
Necessary Adapters and Converters
VGA adapters and DVI converters are important for connecting different video devices. A Video Graphics Array adapter lets you connect a device with a VGA output, like an old computer, to a modern display, like a brand new monitor, that uses HDMI or DisplayPort. The confusing part of this situation is that this way, you can still use older devices with different monitors and new screens.
DVI converters help handle DVI-D signals, which only carry digital information. Since Video Graphics Array uses analog signals, a DVI-D to Video Graphics Array converter is key for changing digital signals into analog. This allows you to connect a DVI-D source to a Video Graphics Array display and ensures compatibility with various DVI source devices.
HDMI converters make it easy to include devices with HDMI outputs into a setup that mostly uses VGA or DVI. Although HDMI converters are not directly related to VGA vs DVI, they show how many adapters and signal converters are available. These tools help users connect their devices without issues.
Step-by-Step Guide on the Conversion Process
Converting between VGA and DVI is easy, even if you are not very experienced with technology. This simple guide will help you through the process:
- Identify the ports: Start by finding the video output port on your source device, like a computer, and the input port on your display device, like a monitor.
- Choose the right adapter or converter: Based on the ports you identified, select the correct adapter or converter. If your source device has a Video Graphics Array output and your display has a Digital Visual Interface input, you will need a VGA to DVI adapter.
- Connect the devices: Plug the adapter or converter into the right ports on both the source and display devices. If you’re using an active converter, it may need a separate power source, so make sure to connect that.
After connecting, turn on both devices. The display should instantly recognize the signal, and the content from your source device will show up. You might need to change some display settings, like resolution and refresh rate, to get the best performance.
Real-World Applications and Case Studies of DVI vs VGA
Looking at real-world uses shows how choosing between DVI vs VGA affects user experience in different situations. For example, in a business environment with many presentations, using DVI instead of VGA on a high-resolution projector makes text clearer and images brighter. This creates a stronger effect on the audience.
Gamers usually favor DVI because it can manage high frame rates and lessen input lag. This leads to smoother gameplay. Knowing these real-world effects helps users to make smart choices based on their specific needs.
Case Study: Upgrading a Business’s Monitor Setup
A business that upgrades its monitor setup from VGA to DVI shows the clear benefits of using a digital interface. The company mainly had older monitors with Video Graphics Array connections. This caused limits in screen resolution and sometimes poor image quality, which hurt employee productivity and the overall look.
After switching to Digital Visual Interface monitors and making sure their systems support DVI output, the company sees a big visual improvement. Digital Visual Interface allows for higher resolution. The signal helps avoid degradation, leading to sharper text and more detailed images. This creates a more professional appearance.
With better visuals, employees do not have to work hard to read blurry text or deal with image problems. Presentations look far more professional and impressive on the new displays. This example shows how a small tech upgrade, like moving from VGA to DVI, can greatly affect a business’s operational efficiency and visual quality.
Case Study: Impact of DVI on Gaming and Streaming Quality
For gamers and streamers, using DVI can greatly improve the visual experience. This change makes gaming or streaming sessions more fun. Games, especially, benefit from DVI as it offers a clearer and faster display. The lower input lag from the signals lets actions on the screen match what the user does right away. This is important for fast-paced games.
Also, DVI can handle higher refresh rates. This means a smoother visual experience with less motion blur and a better feeling of movement in quick scenes. These clear images and quick responses create a more exciting gaming experience. Streamers can also enjoy the better visual quality Digital Visual Interface provides.
DVI sends a clear and stable signal. This means viewers see the streamed content at the best quality, reducing distractions like image problems or glitches. This makes the stream look more professional and efficient like so it could help attract more viewers and increase engagement.
Conclusion
In conclusion, knowing the differences between DVI vs VGA can change the quality of your display. DVI gives you higher resolution support and less signal disturbance compared to Video Graphics Array, so it’s a better choice for new devices. However, VGA is still useful for older systems because it’s often cheaper and works well with them. If you need to switch between the two, especially when dealing with different signals, you might need certain adapters or converters, so pick carefully based on what you need. Whether you are updating office monitors or improving gaming, choosing the right tech can improve your visuals. Make good choices based on the specific needs of your setup for the best performance.
Frequently Asked Questions
What is the maximum resolution supported by DVI Vs VGA?
The maximum resolution for VGA is usually 1920×1080, but this is good for regular high-definition screens. On the other hand, Digital Visual Interface, especially the dual-link type, can handle much higher resolutions and ensures higher image quality, making VGA an almost obsolete technology. It can go up to 2560×1600, providing great clarity for applications that need it.
